W beam galvanized guardrail is the most common highway crash barriers designed to prevent the vehicle from running out of the road in dangerous area. Thrie beam (three beam) guardrail has better anti-crash performance, which is widely applied in dangerous road such as high grade roads and bridge.Huaan can supply E

Featured Products

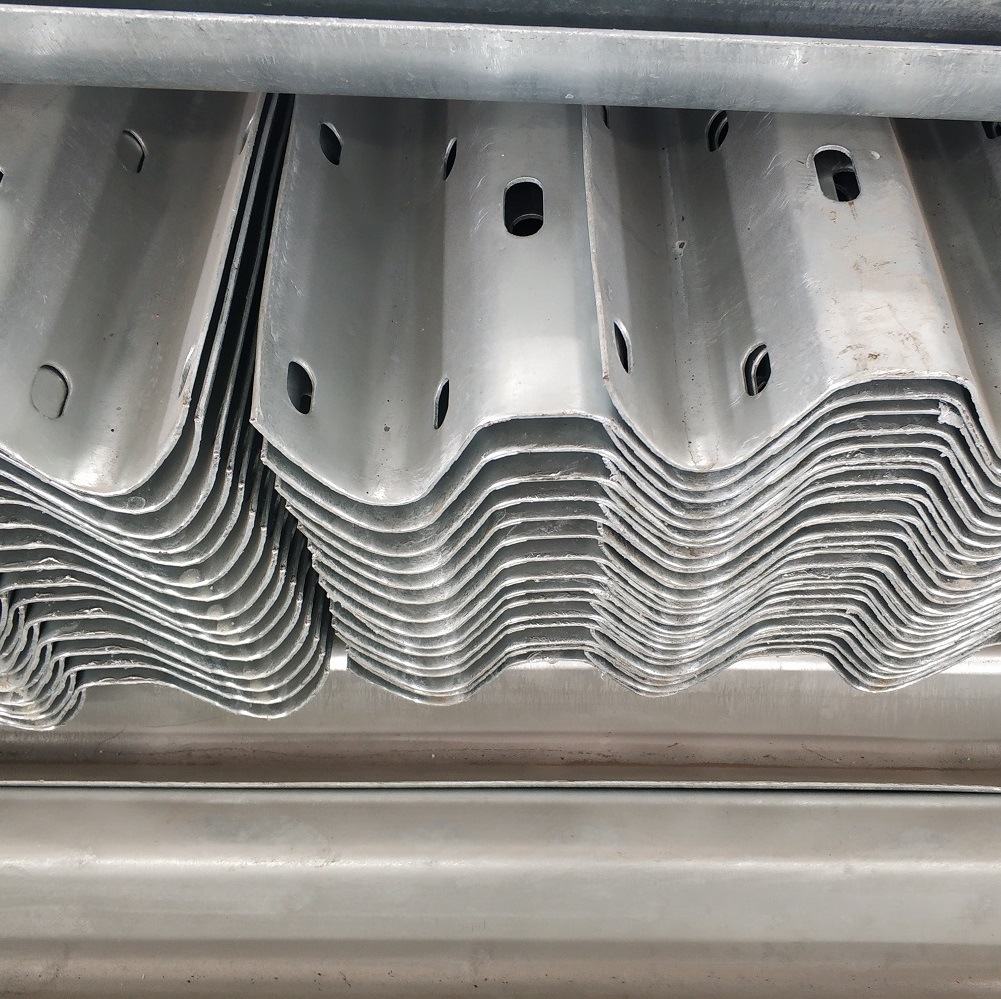

W beam galvanized guardrail is the most common highway crash barriers designed to prevent the vehicle from running out of the road in dangerous area.
Thrie beam (three beam) guardrail has better anti-crash performance, which is widely applied in dangerous road such as high grade roads and bridge.
Huaan can supply EN1317 and RAL-RG620 standard guardrail and accessories for roadside and highway guardrail projects. The beams are galvanized with a uniform layer of zinc coating or zinc+plastic coated to prevent weak spots caused by rust and corrosion.
Meanwhile, our M180 guardrails have passed the crash testing of N1, N2, H1, H2 and H3 as per EN1317-2.


Specification:
Standard Size4320mm*310mm*85mm , 3820mm*310mm*85mm
3320mm*310mm*85mm , 2820mm*310mm*85mm
2320mm*310mm*85mm , or customized
MaterialS235, S275, S355
Base metal nominal thickness3mm or customized
Surface TreatmentHot dip galvanized
Zinc coating thickness600g/m2, 84μm, or customized
StandardsEN1317-2
ApplicationHighway, High grade roads.

Standard Size4320mm*506mm*85mm , 3820mm*506mm*85mm
3320mm*506mm*85mm , 2820mm*506mm*85mm
2320mm*506mm*85mm , or customized
MaterialS235, S275,S355
Base metal nominal thickness3mm, 4mm or customized
Surface TreatmentHot dip galvanized
Zinc coating thickness600g/m2, 84μm, or customized
StandardsGB/T31439.2-2015
ApplicationHighway, High grade roads.

We manufacture highway guardrails according to the Standards as below:

A. GB/T31439-2015 (Corrugated Sheet Steel Beams For Expressway Guardrail - China)

B. AASHTO-M180 (Corrugated Sheet Steel Beams For Highway Guardrail - USA)

C. AS/NZS 3845:1999 (Road Safety Barrier Systems - Australia/New Zealand)

D. EN-1317 (Road Restraint Systems - Europe)

E. Or tailor-make according to client's requirements


Highway Guardrail Crash Barrier Highway Guardrail System Cost Per Foot
Highway Guardrail Crash Barrier Highway Guardrail System Cost Per Foot

Packing and Delivery:
Highway Guardrail Crash Barrier Highway Guardrail System Cost Per Foot
Highway Guardrail Crash Barrier Highway Guardrail System Cost Per Foot


Our comapny:
Highway Guardrail Crash Barrier Highway Guardrail System Cost Per Foot

Website: highwayguardrail.en.made-in-china.com
                 highwayguardrail.en.made-in-china.com

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
