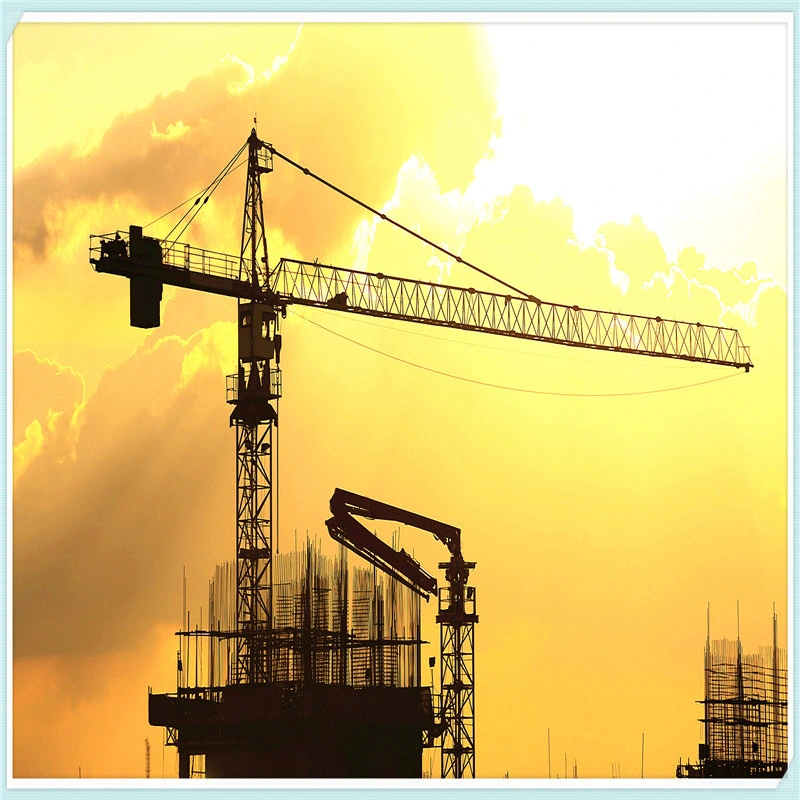

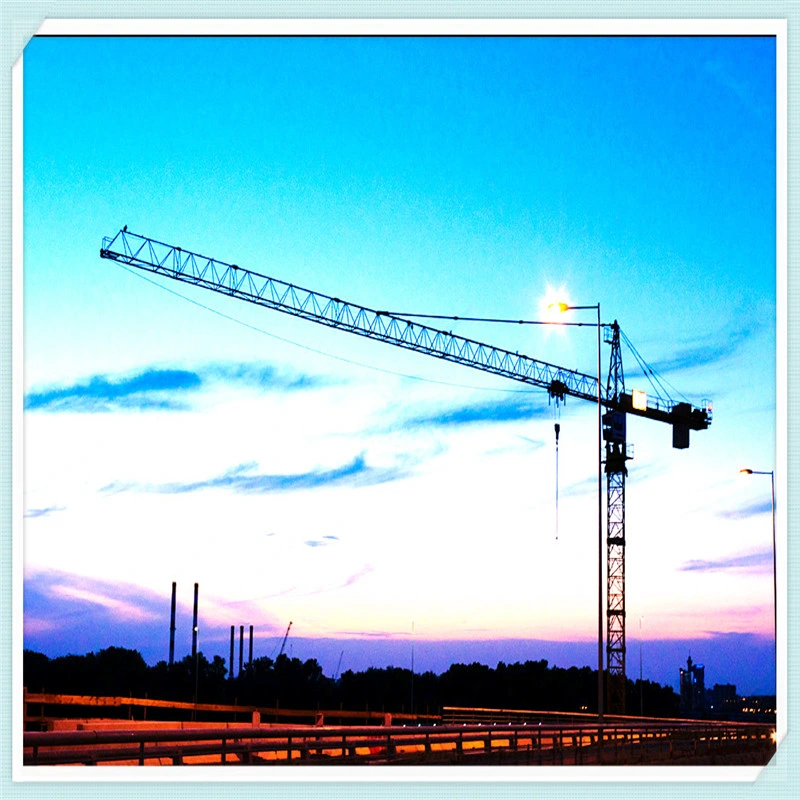

Self Raising Electric Tower Crane topkit tower crane TC6018-6T

Advantage of Tower Crane
1. Robot automatic welding system;
2. Automatic impeller blasting and spraying assembly line;
3. CNC plasma cutting machine;
4. Precision machine tools;
5. France Schneider contactor;
6. Jiangte motor;
7. equipped with complete set of safety devices
8. CE and ISO 9001:2000 certificate
Item Performance Parameters
1Max. Load6t
2Max. jib length60m
3Tip load1.8t
4Free standing height 50m
5Max. height 180m
6Size of mast section 1.835x1.835x2.5
7Material of mast sectionAll mast sections are manganese Q345B 135×135×12 square tube; Jib is Q345B.
9Terms of payment30% TT deposit, 70% TT or L/C at sight before delivery
10Delivery time15-20 days
11Warranty periodOne year
12The period and fees of the warranty
  1. . In the warranty period, the seller won't charge for replacing the broken fittings that caused by the quality and will pay for the mailing fees concerned.
  2. . In the warranty period, the seller will charge cost only for the replacing fittings which caused by users don't keep the machine in good condition or don't operate in the correct way. The mailing and related fees should be paid by the buyer;
  3. . When the warranty period is expired, the seller will only charge for cost of the fittings which have been replaced. And the mailing and related fees have to be paid by the buyer;
  4. . No matter the warranty period is expired or not, should the buyer need the seller's engineer to the site of the buyer to deal with the trouble of the equipment, the buyer has to supply an interpreter and pay for the fees of round trip ticket, hotel fees, transportation fees and pay the seller's Engineer 150 US dollars per day per person;
13Installation and Testing of equipment
  1. . The Seller will send  one experienced engineer to the Buyer's site to help the completed  installation works under the requirement of the Buyer.
  2. . The Buyer is responsible for the following:
A. deal with the visa for the Seller's engineer
pay the round trip air ticket; Boarding and lodging;
a Chinese-English interpreter;
The transportation fees of the engineer in the buyer's country;
responsible for the safety of the engineer in the buyer's country;
Pay the engineer  USD150  per working day as allowance;
  1. . Preparation work on the site should be done well. Should the reason of buyer or the customer that caused the delay of installation, they have to bear the corresponded fees. The buyer has to fill in an installation contact form by the seller and fax to the seller to ensure the preparation work is well done Before the seller's engineer arriving the site of the buyer, should the engineer of seller arrived the site of buyer but preparation work not done, the related fees should be paid by the buyer;
  2. . The installation period can be arranged by the seller and the buyer.

Loading chart

2 falls
Jib length (m)3-41.2424344454647484950
Load (t)32.9402.8542.7722.6942.6192.5472.4792.4132.349
Jib length (m)51525354555657585960
Load (t)2.2892.2302.1742.1202.0672.0171.9681.9301.8561.80

4 falls
Jib length (m)3-23.0224252627282930313233
Load (t)65.775.5125.2675.0404.8304.6344.4514.2804.1203.969
Jib length (m)343  5363738394041424344
Load (t)3.8273.6933.5673.4483.3343.2273.1253.0282.9362.8472.763
Jib length (m)4546474849505152535455
Load (t)2.6832.6062.5332.4622.3942.3292.2672.2072.1492.0942.040
Jib length (m)5657585960
Load (t)56571.8901.8441.799

Main parameters

Mechanical load factorHoisting mechanism M5
Slewing mechanismM4
Trolleying mechanismM4
Hoisting mechanism

MotorModelYZTD2-2/4/16
Power(kW)24/24/5.4
Height limiterModelFKDX-G
Wire steel ropeModel6X19-12.5-1770-
Max. tractive force(N)16000
fallsa=2a=4
Hoisting speed (m/min)74383820
Rated load (t)1.5336
Min. Stable descending speedm/min≤5
Slewing mechanismMotorModelYZR160M1-6
Power (kW)5.5×2
Rotating speed (r/min)908
ReducerModelXX4-120AI
Transmission ratio195
Hydraulic couplerModelYOX280A
Small pinion gearNo. of modulus     m12
No. of teeth     z17
Modification coefficient+0.5
Slewing speedr/min0.61
Slewing bearingSingle row four point contact ball slewing bearingModel011.45.1400
No. of modulus     m12
No. of teeth      z131
Modification coefficient+0.5
Hydraulic jacking mechanismMotorModelY132M2-4
Power(KW)7.5
Cylinder rated work pressureMpa25
Max. Jacking forceT63
Cylinder strokeMm1600
Installation distanceMm2100
Dia. of cylinderMmφ180
Dia. of piston rodMmφ125
Jacking speedm/min0.4
Trolleying mechanismMotorModelYZTDE180M-4/8/24
Power (kW)5/3.7/1.1
Wire steel ropeSpecification 6×19-9.3-1550
ReducerModelXX3-14.40
Transmission ratio39.7
Trolleying speedm/min58.6/29.3/8.79

Packing & Shipping
Packing in 40HC container.
If adopt CIF, we will find better shipping company for clients
Delivery time
Providing timely delivery, after 30% advance payment By T/T , within 5-15 working days arrange shipping .
Our services
1. Customized service.
   We can do all special design according to your  requirement
2. welcome visit our factory, learn about our factory and products.
3. 24 hours on line or phone , technical support
After sale service:
1. The seller will send one of her professional technicians to the site of buyer to  guide the erecting work.
2. 12(twelve)months (except for wire rope and AC contactor) after the equipment be well erected and we will offer spare parts whole year long.
3. lifelong time freely provide technical support .
   FAQ

Q1:What is the Warranty for tower cranes?
A1:For the tower cranes,we have 1 years warranty.If any quality problems on our side occured in this period ,we will supply the free new one for replacement.

Q2:What is the mean of QTZ and TC for tower crane model?And please illustrate.
A2:QTZ is classified according to China National Standard.
"Q" is the acronym of Crane in Chinese language(Qing Zhongji), "T" is the acronym of Tower head type in Chinese language(Ta Shi) and "Z" is the acronym of self rising in Chinese language(Zi Sheng Shi)
"TC" is the acronym of Tower Crane in English language.

For example:QTZ63(5013) means topkit tower crane, the rated lifting moment is 630KN.M (63 is 10-1 of the rated lifting moment).The working jib length is 50 meter and tip load is 1.3t when jib length is 50m.

Q3:What is the optional parts for your tower cranes?
A3:1) Anemometer
2) Air conditioner for operation cab
3) Black box for operation cab
4) Remote control
5) Full VFD(Variable Frenquency Drive) control
