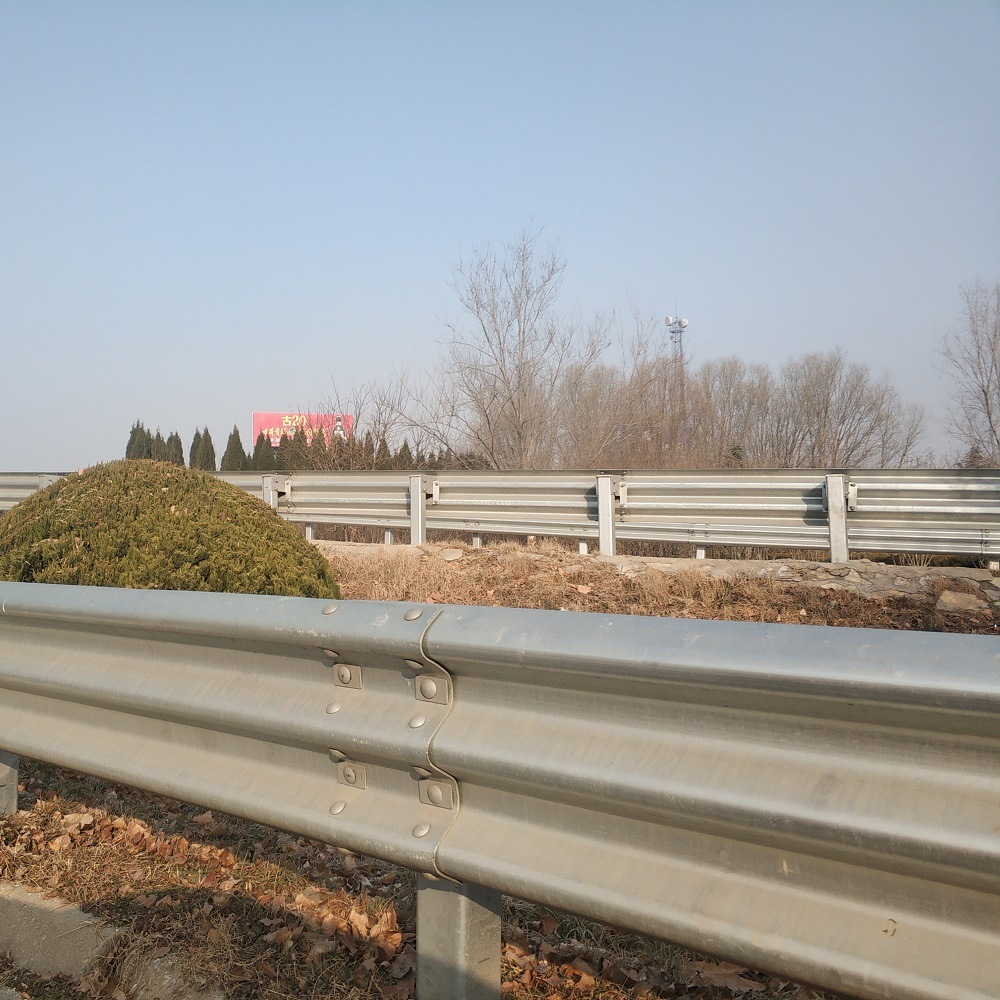

W beam galvanized guardrail is the most common highway crash barriers designed to prevent the vehicle from running out of the road in dangerous area.
Thrie beam (three beam) guardrail has better anti-crash performance, which is widely applied in dangerous road such as high grade roads and bridge.
Huaan can supply EN1317 and RAL-RG620 standard guardrail and accessories for roadside and highway guardrail projects. The beams are galvanized with a uniform layer of zinc coating or zinc+plastic coated to prevent weak spots caused by rust and corrosion.
Meanwhile, our M180 guardrails have passed the crash testing of N1, N2, H1, H2 and H3 as per EN1317-2.
Specification:
Product details:
Packing and Delivery:
Our comapny:
Website: highwayguardrail.en.made-in-china.com
highwayguardrail.en.made-in-china.com
Thrie beam (three beam) guardrail has better anti-crash performance, which is widely applied in dangerous road such as high grade roads and bridge.
Huaan can supply EN1317 and RAL-RG620 standard guardrail and accessories for roadside and highway guardrail projects. The beams are galvanized with a uniform layer of zinc coating or zinc+plastic coated to prevent weak spots caused by rust and corrosion.
Meanwhile, our M180 guardrails have passed the crash testing of N1, N2, H1, H2 and H3 as per EN1317-2.
Specification:
| Standard Size | 4320mm*310mm*85mm , 3820mm*310mm*85mm 3320mm*310mm*85mm , 2820mm*310mm*85mm 2320mm*310mm*85mm , or customized |
| Material | S235, S275, S355 |
| Base metal nominal thickness | 3mm or customized |
| Surface Treatment | Hot dip galvanized |
| Zinc coating thickness | 600g/m2, 84μm, or customized |
| Standards | EN1317-2 |
| Application | Highway, High grade roads. |
| Standard Size | 4320mm*506mm*85mm , 3820mm*506mm*85mm 3320mm*506mm*85mm , 2820mm*506mm*85mm 2320mm*506mm*85mm , or customized |
| Material | S235, S275,S355 |
| Base metal nominal thickness | 3mm, 4mm or customized |
| Surface Treatment | Hot dip galvanized |
| Zinc coating thickness | 600g/m2, 84μm, or customized |
| Standards | GB/T31439.2-2015 |
| Application | Highway, High grade roads. |
Product details:
Packing and Delivery:
Our comapny:
